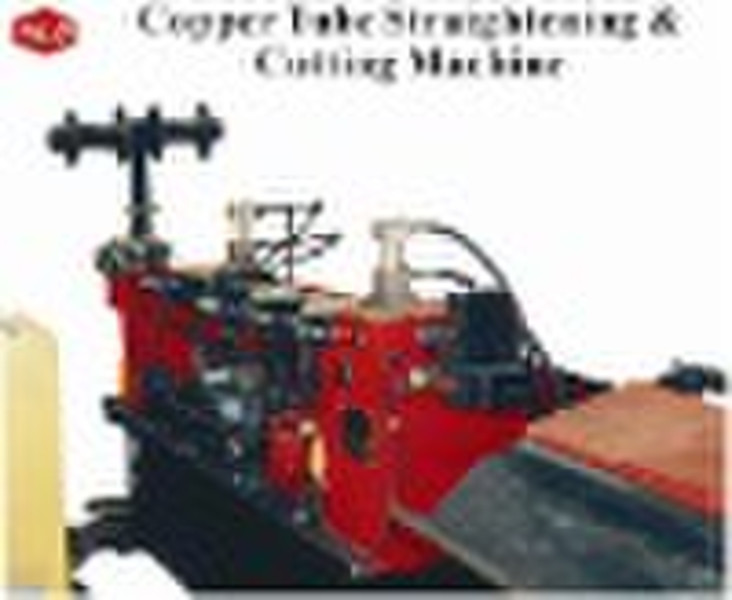

Copper Tube Straightening & Cutting Machine

Copper Tube Straightening & Cutting Machine This machine is for straightening copper tube and cutting it at a certain length. Detail Tech Data (1) Cut 4 tubes or 2 tubes per time, tube OD 6 19mm. Machine specs optional. (2) Each cut length max. 1000mm adjustable; if more than 1000mm length by multi-feeding. (3) Cutting speed: 5 6 time / minute (1000mm tube) (4) Oil supply by double pumps. Pump pressure 10Mpa, Big pump volume 32 Ltr / min. Small pump volume 6 Ltr / min. (5) Oil pump engine power 4kw, cutting engine power 0.75kw (6) Air pressure 0.5 0.7Mpa, air volume 0.2 cubic meters / hour (7) Cooling water 20L /min. (8) Copper Tube: purse up <=3 5%, cutting precision 0.1mm, straightening precision 3/1000mm. copper tube machine straightening machine cutting machine
